Description

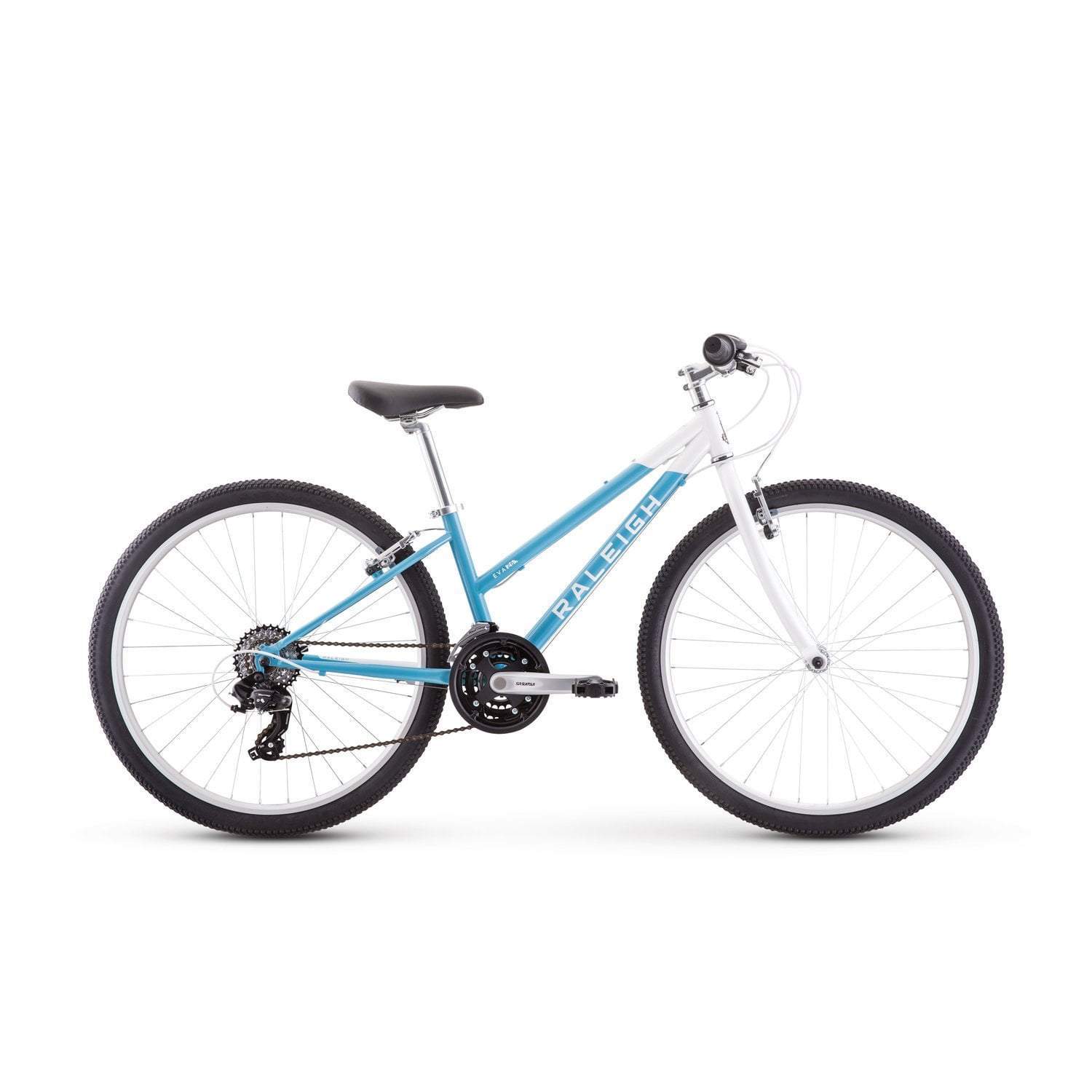

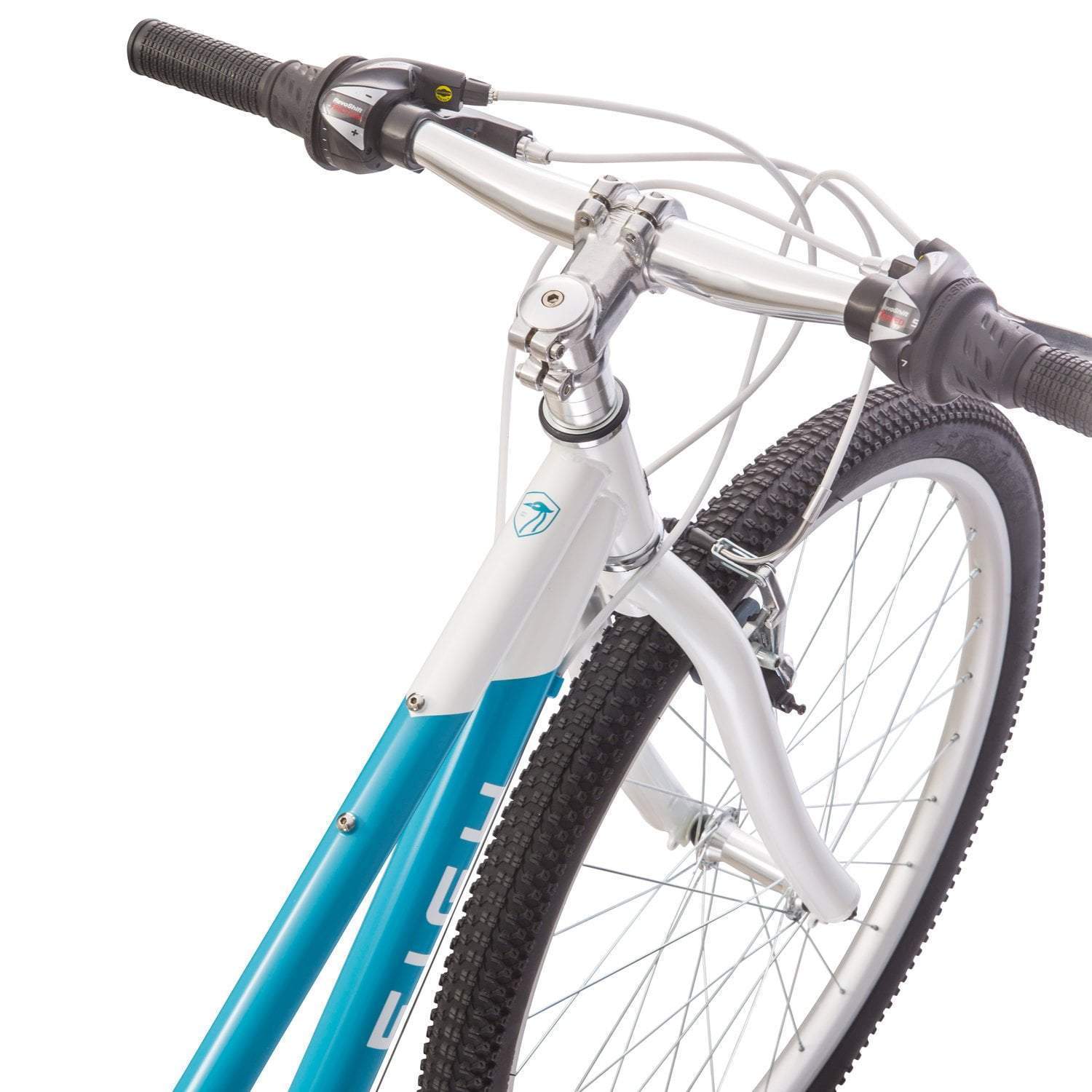

Made for fun and adventure on light trails and paved paths, the Raleigh Eva 26 is designed for riders who are too big for a 24 inch bike but not comfortable on a bike with 27.5 inch or larger wheels. The Eva 26 is made with a durable steel frame, 3 gears up front and 7 in back, and tires wide enough to tackle any bump in the path. Narrow handlebars and smaller grips keep the bike comfy and easy to control for smaller riders. Whether cruising around town, spinning on the bike path, or exploring off-road, the Eva 26 is ready to roam.
Specifications
| Frame | 26 " High-Tensile MTB frame w/Custom Tubes |
|---|---|
| Fork | 26" Rigid Steel Fork |
| Headset | 1-1/8" Threadless |
| Cranks | SR Suntour XCC 42/34/24t |
| Bottom Bracket | Sealed Cartridge |
| Rear Derailleur | Shimano Tourney 7spd |
| Shifter | Shimano 7spd Revo Shifter |
| Cogset | 7spd 14-32 |
| Chain | KMC Z51 |
| Front Hub | 32h QR w/ Cromo Axle |
| Rear Hub | 32h QR w/ Cromo Axle |
| Spokes | 14g |
| Rims | Weinmann XRD28, 32h, 26" |
| Tires | 26x2.0 |
| Brakes | Alloy V-Brake |
| Brake Levers | Alloy V-Brake |
| Pedals | Resin Platform |
| Handlebar | 580mm Alloy 31.8, 25mm Rise |
| Grips | Jr. Soft PVC |
| Stem | Alloy Ahead 60mm x 7° 31.8 |
| Seat | Jr. Mountain |
| Seatpost | Alloy Micro Adjust 28.6x350mm |
| Bike Weight | 29.85 |
Geometry
| Bike size | 26" |
|---|---|
| Seat Tube Length | 330.0mm |
| Stand Over Height | 510.0mm |
| Top Tube Length | 530.0mm |
| Stack | 501.0mm |
| Reach | 372.0mm |
| Head Tube Length | 90.0mm |
| Head Angle | 70.0° |
| Seat Angle | 72.5° |
| Wheel Base | 1003.0mm |
| Chain Stay Length | 425.0mm |
| Fork Offset | 40.0mm |
| BB Height | 45.0mm |
