Description

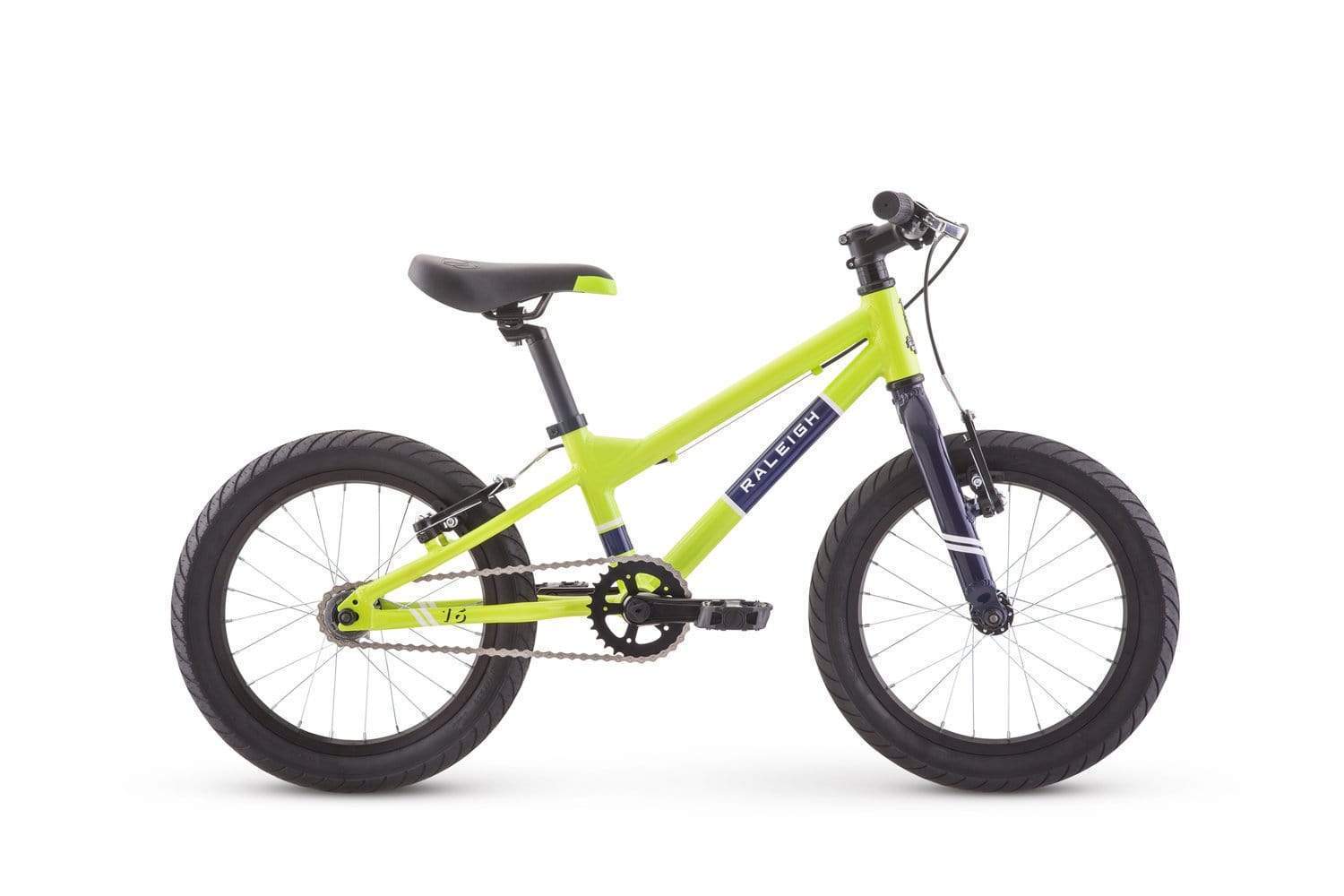

The Raleigh Rowdy 16 was built for riding around the neighborhood, to school, or on the local dirt trails. This 16-inch kids bike is easy to maneuver for young riders. The single-speed drivetrain keeps them focused so they can concentrate on the bike path or sidewalk ahead while practicing braking with the front and rear V-brakes.
Specifications
| Frame | 16" Low Standover 6061 Aluminum |
|---|---|
| Fork | 16" 6061 Aluminum Rigid, V-Mounts |
| Headset | 1-1/8" Threadless |

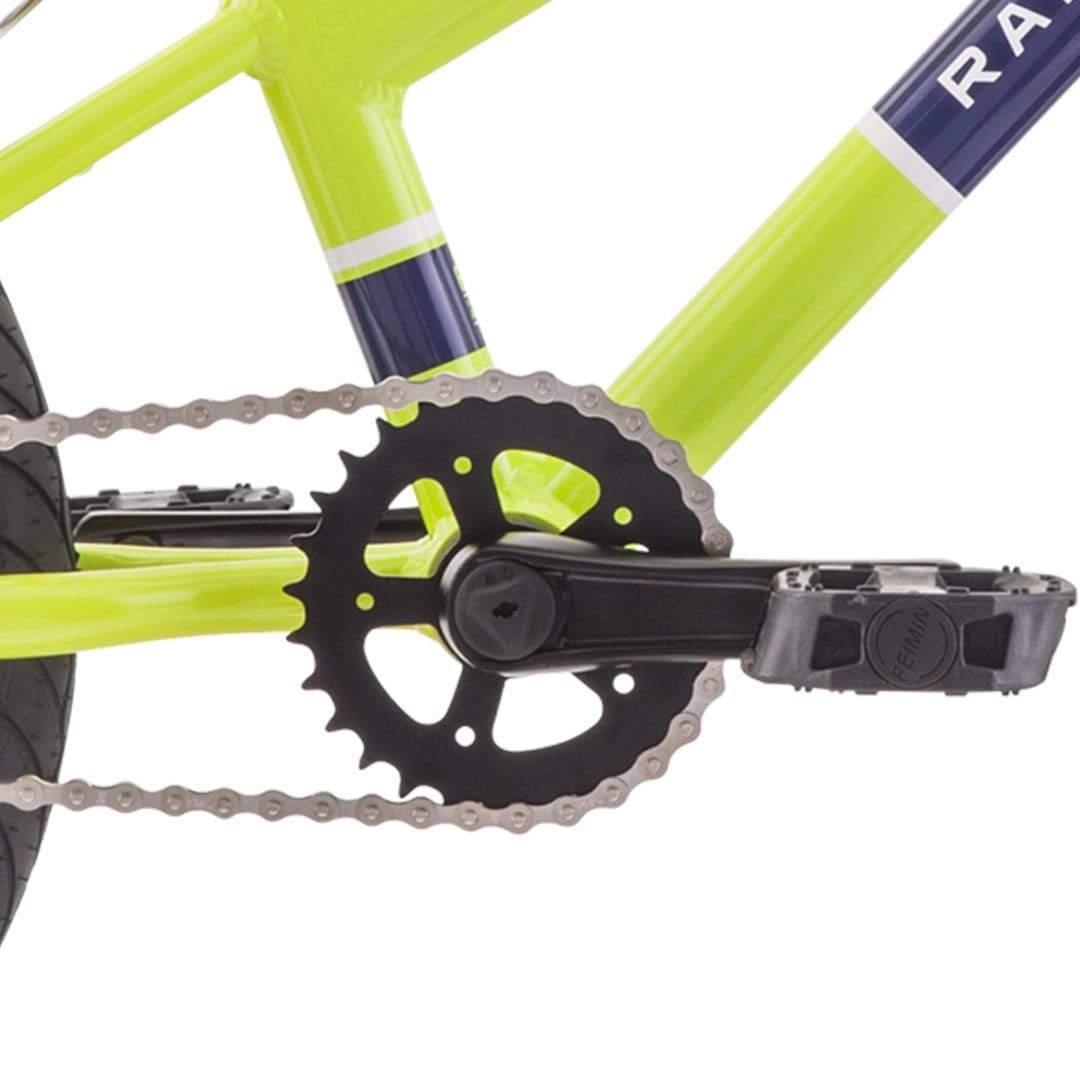

| Cranks | 102mm 3pc Alloy, 28t w/Double Guard |
| Bottom Bracket | 2pc Cartridge |
| Cogset | 16t Steel |
| Chain | KMC Z410A |
| Front Hub | Alloy 24h Cromo Axle Nutted |
| Rear Hub | Alloy 24h Cromo Axle Nutted |
| Spokes | 14g |
| Rims | Alloy Anodized 24h |
| Tires | 16 x 2.125" |

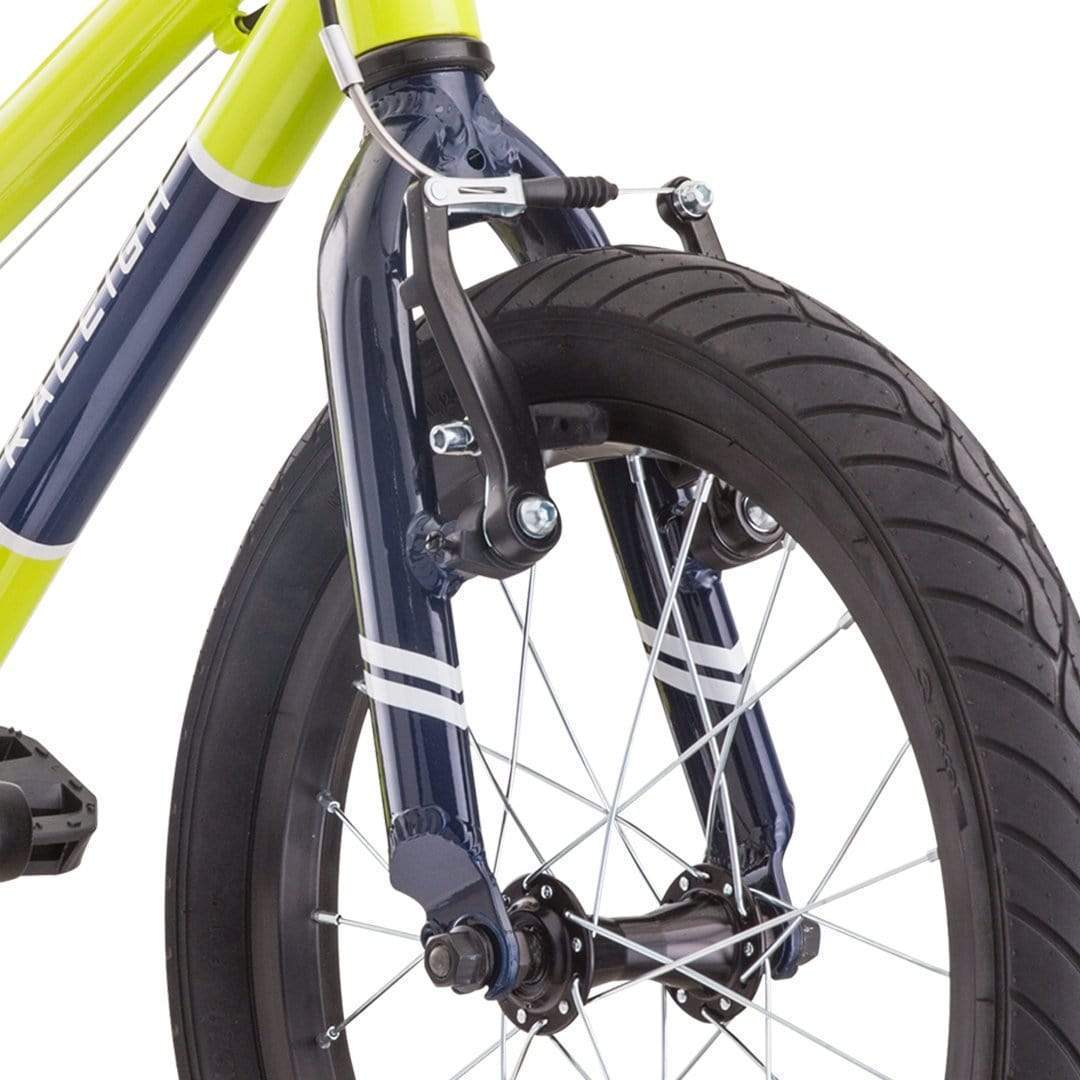

| Brakes | Alloy V-Brake |
| Brake Levers | Alloy V-Brake |
| Pedals | Resin Platform |

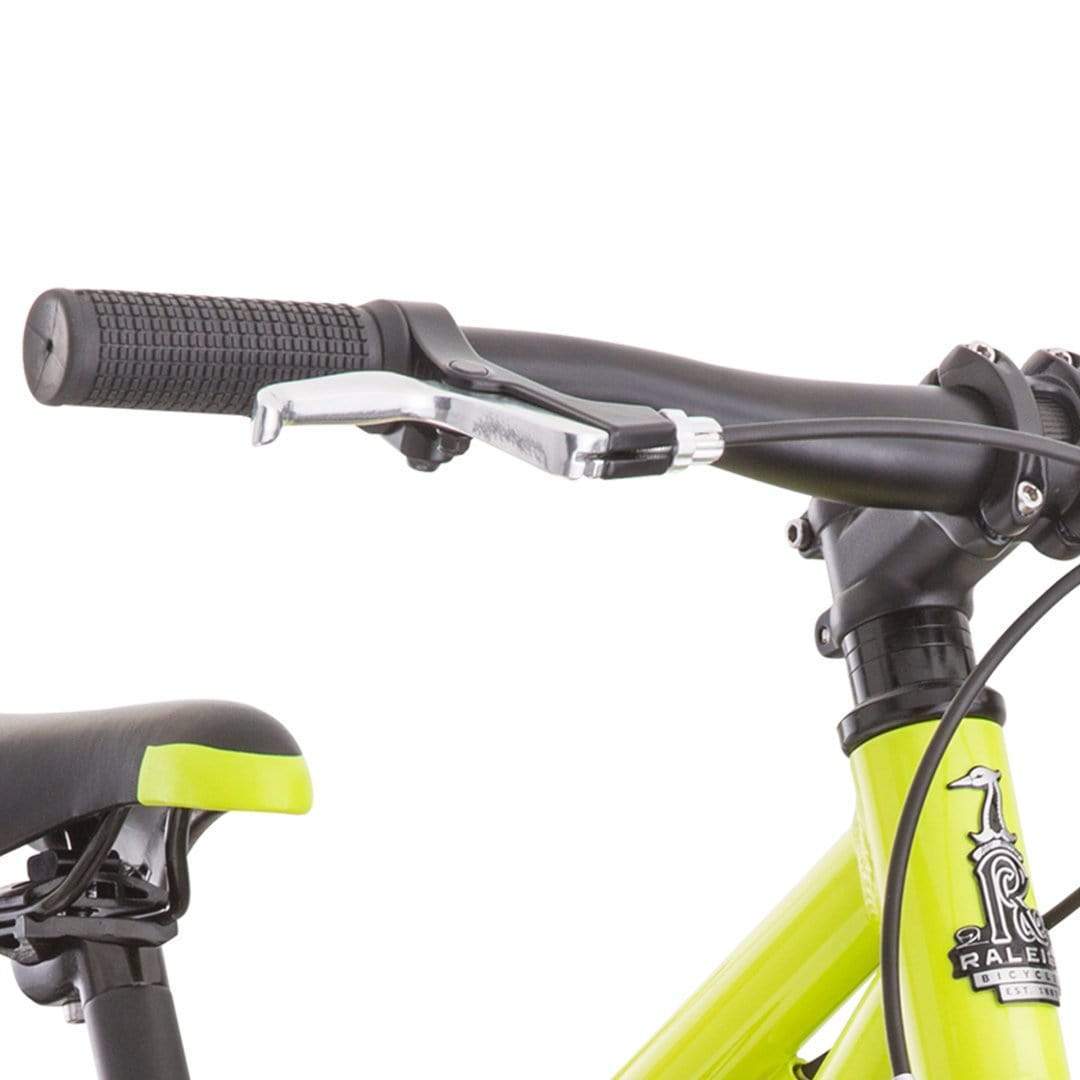

| Handlebar | 540mm Alloy 31.8, 25mm Rise |
| Grips | Soft PVC |
| Stem | 60mm x 7° Alloy Ahead |

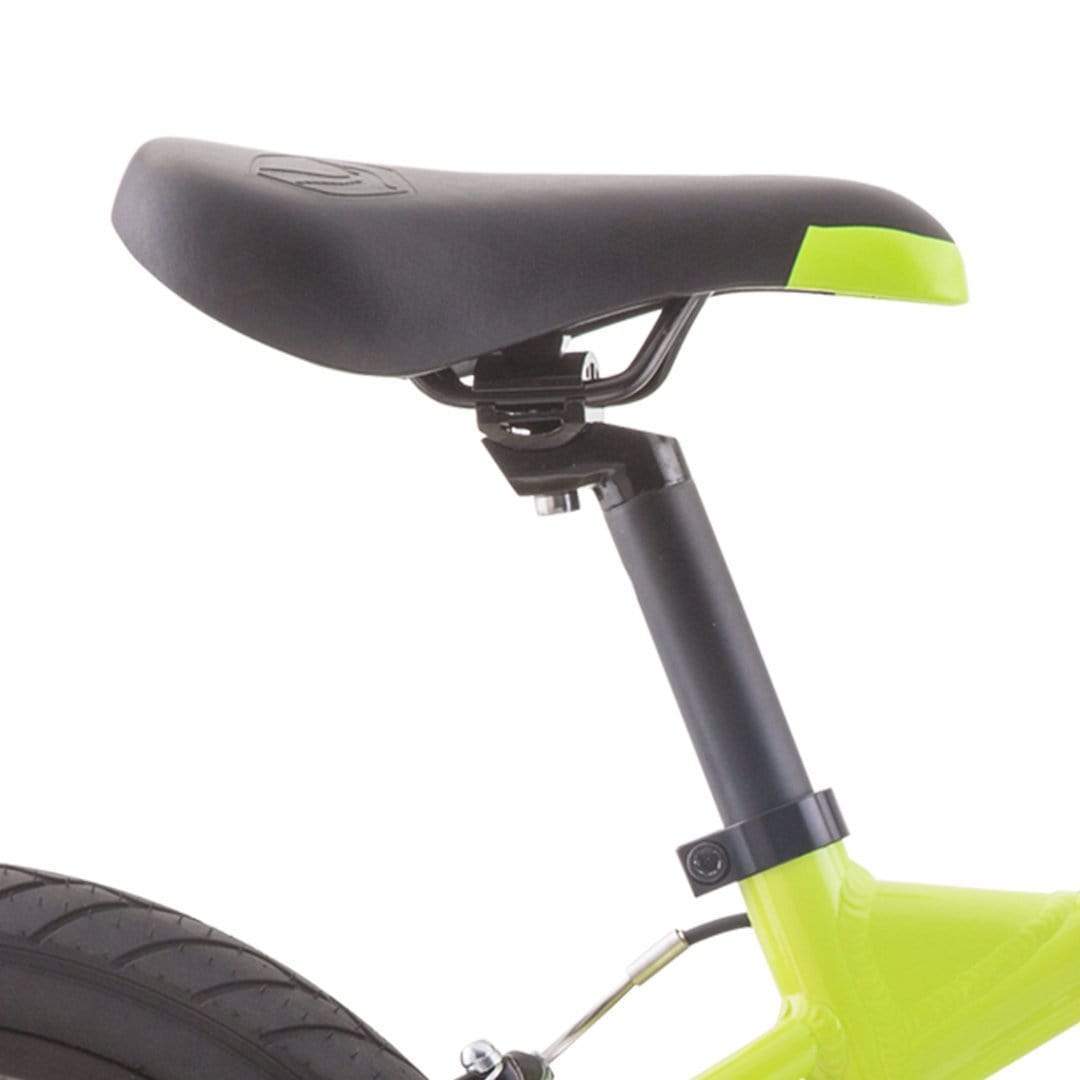

| Seat | Raleigh Jr. Mtn |
| Seatpost | Alloy 27.2 x 200mm |
| Bike Weight | 19.2 lbs. |
Geometry
| Bike size | 16”, Age 3-6, 38” – 45” | |||||||
|---|---|---|---|---|---|---|---|---|
| Seat Tube Length | 220.0mm | |||||||
| Stand Over Height | 394.0mm | |||||||
| Top Tube Length | 395.0mm | |||||||
| Stack | 347.0mm | |||||||
| Reach | 269.0mm | |||||||
| Head Tube Length | 100.0mm | |||||||
| Head Angle | 73.0 | |||||||
| Seat Angle | 72.0 | |||||||
| Wheel Base | 717.0mm | |||||||
| Chain Stay Length | 318.0mm | |||||||
| Fork Offset | 22.0mm | |||||||
| BB Height | -5.0mm | |||||||
| Stem Length | 60.0mm | |||||||
| Handlebar Width | 540.0mm | |||||||
| Crank Length | 127.0mm | |||||||
| Seat Post Length | 0.0mm |
